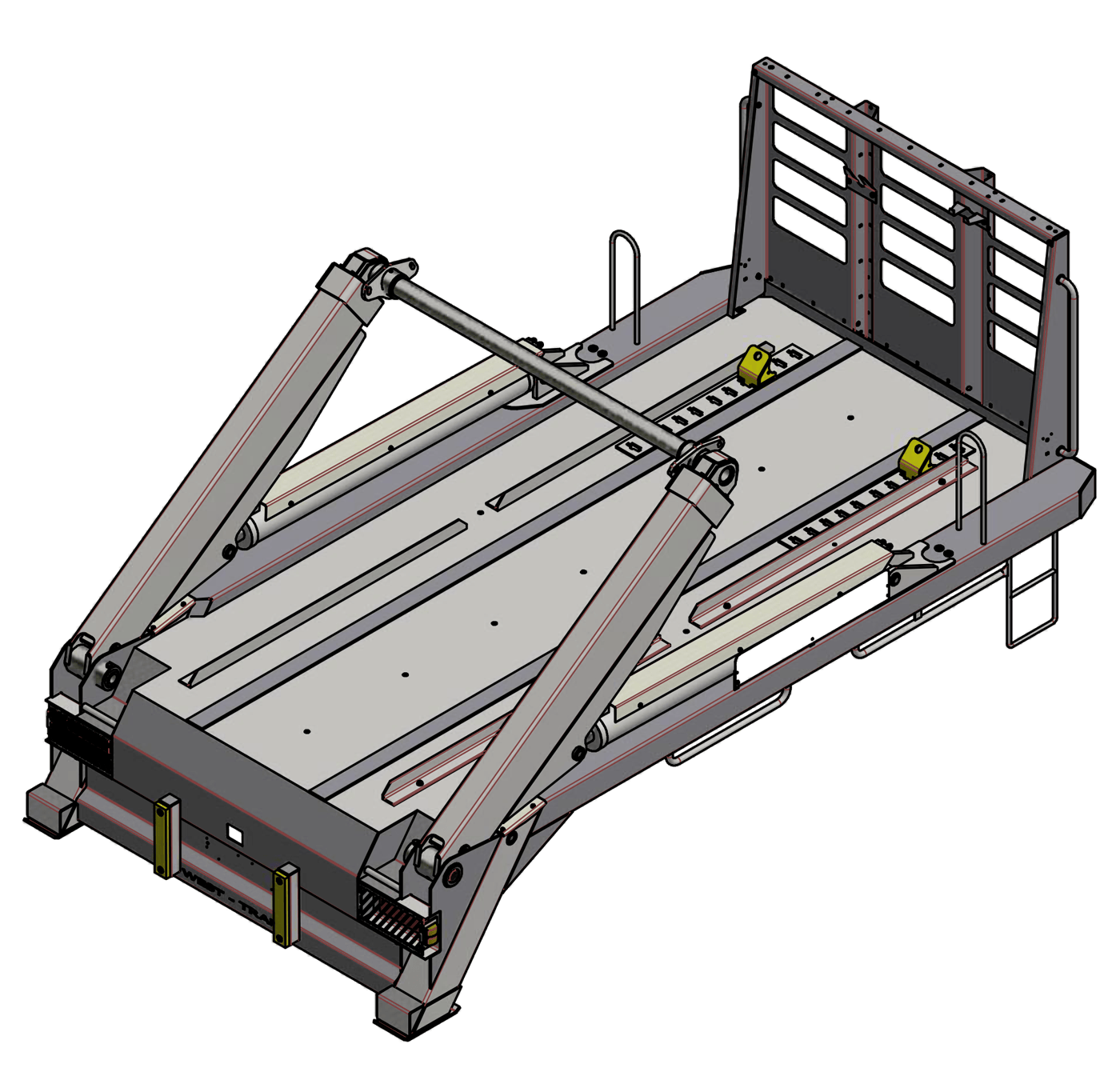

Skip Loader DS 120s-s

Description

West Trans Equipment Australian designed & manufactured Skip Loaders are constructed from high tensile structural steel and quality components using the latest manufacturing technologies and production techniques. All skip loader models comply with relevant Australian Standards, ADR’s and codes. Skip Loaders are protected with an anti corrosive primer base and 2 coats of customers choice of finish colour. Each skip loader undergoes extensive ‘certified’ static and dynamic load testing in accordance with crane code, AS1418 prior to customer hand over.

Recomended Truck Chassis:

  • 4X2 @ 4300mm wheel base
  • GVM 15000 to 16000kg

Standard Equipment

  • Working load limit (WLL) = 12000kg
  • Tare weight = 2600kg
  • Hydraulic working pressure = 193BAR (2800psi)
  • Hydraulic pump flow rate = 70L/min @ 1000rpm
  • Hydraulic oil tank capacity = 80L
  • Operational times @ 1000rpm
  • Load = 38 sec., unload = 51 sec.

Optional Equipment

  • Remote engine throttle control (new trucks)
  • Chassis/body load cells
  • Amber warning beacon on load board
  • Tow coupling
  • Work lights (twin or single) on load board
  • Tool box
  • Radio remote control
* Speeds dependant on transmission and PTO ratio available

Watch 3D animation
