Description

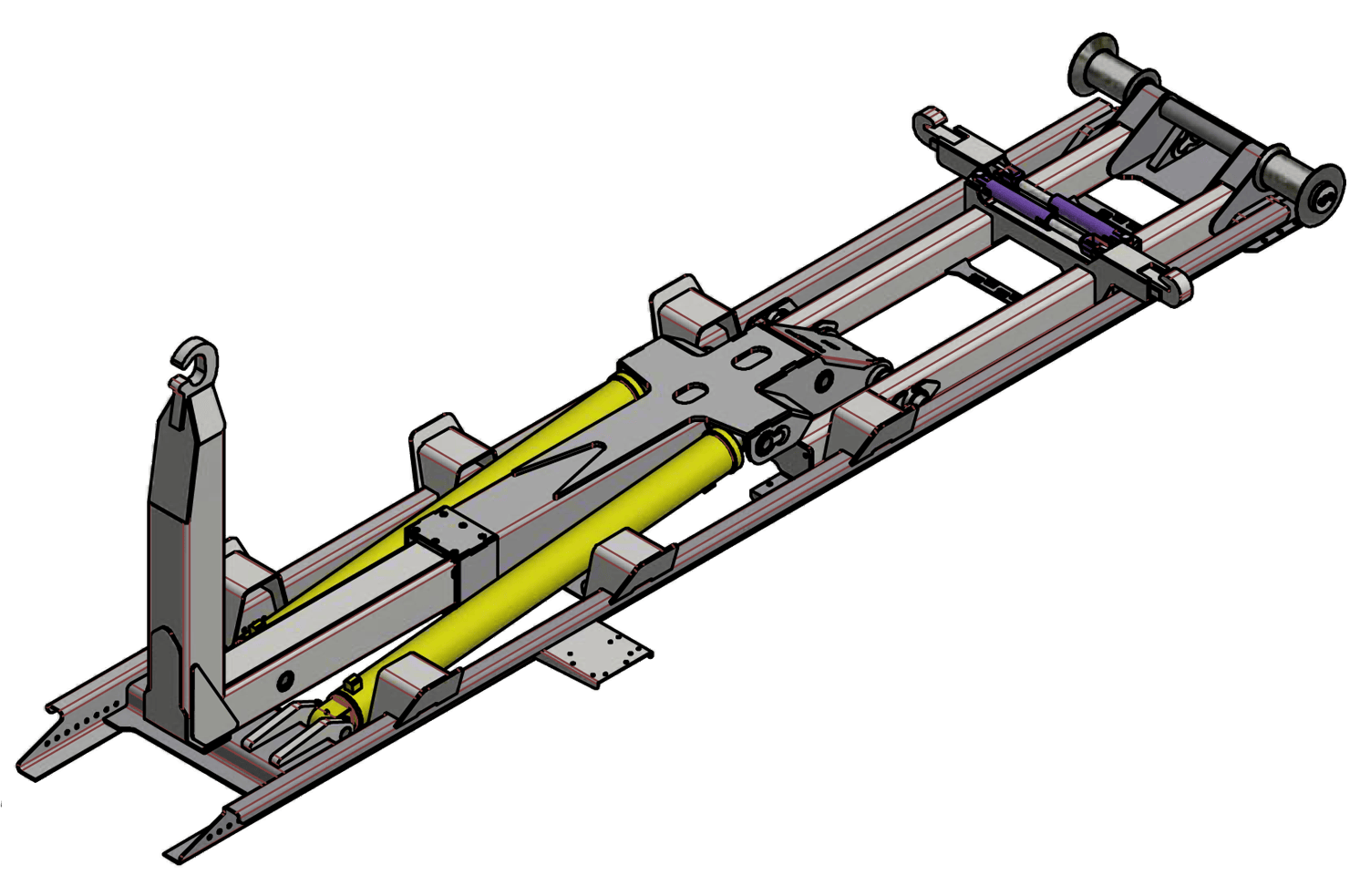

Hook Lift HL 14

West-Trans Equipment Australian designed and manufactured Hook-Lift Machines are constructed from high tensile structural steel and quality components using the latest manufacturing technologies and production techniques. All Hook-Lift Machines are protected with an anti-corrosive primer base and two coats of black finish colour.

Standard Equipment

  • Working Load Limit (WLL) = 14,000kg
  • Tare weight = 1,950kg
  • Hydraulic working pressure = 300 BAR (4,350psi)
  • Pump Flow Rate = 70L/min
  • Hyd. oil tank capacity = 80L
  • Bin rail width = 1,060mm
  • Tunnel height = 86mm
  • Lift bar height = 1,450mm

Optional Equipment

  • West-Trans Tarp Cover
  • Tow Couplings
  • Inner bin locks
  • Manual adjustable hook height
  • Tool box (stainless or mild steel)
  • Single or dual work area lights
  • Amber warning beacon
