Hook Lift HL 06-900

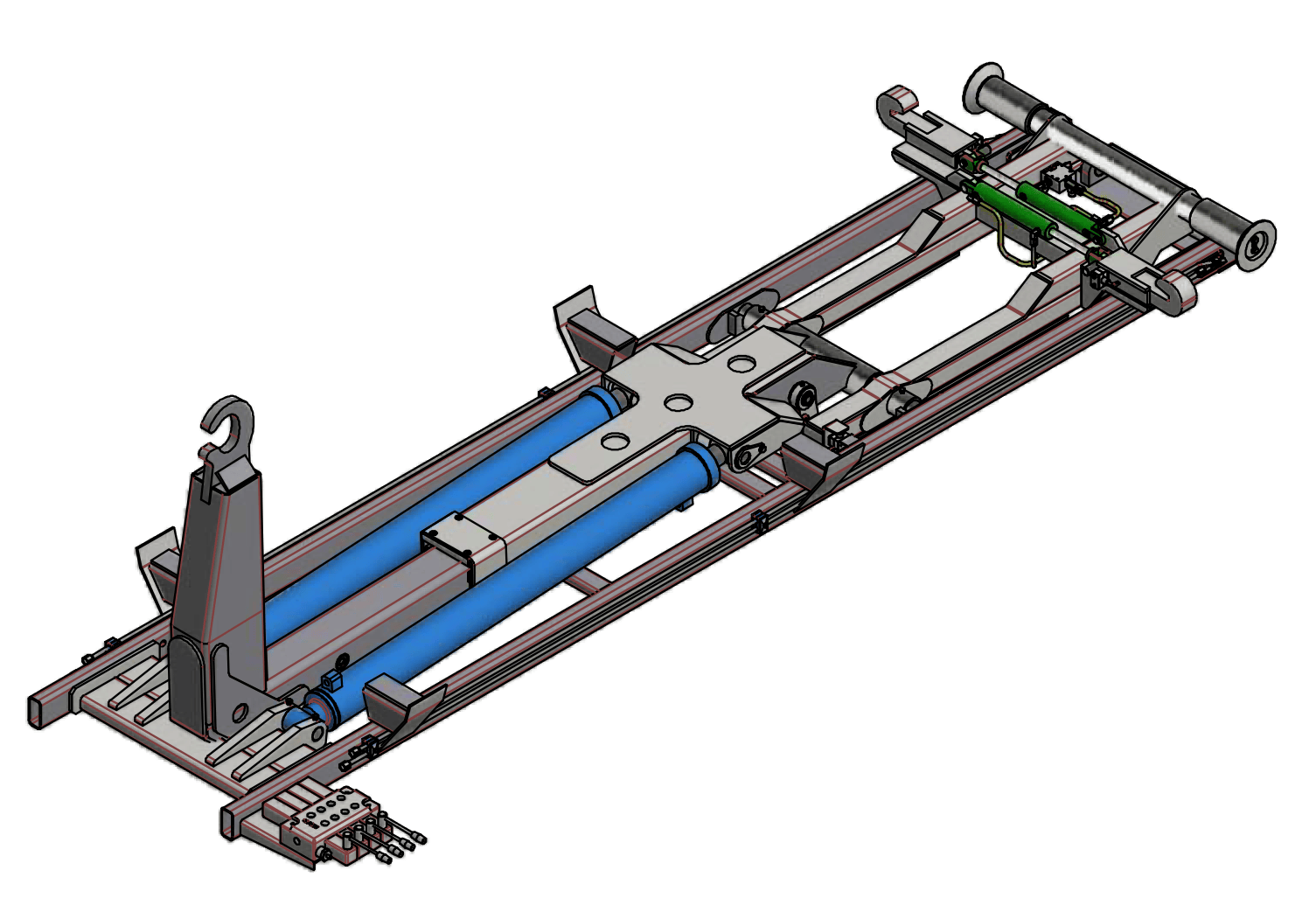

Hook Lift HL 06-900 front view

Description

West Trans Equipment Australian designed & manufactured Hook-Lift machines are constructed from high tensile structural steel and quality components using the latest manufacturing technologies and production techniques. All Hook-Lift machines comply with relevant Australian Standards, ADR’s and codes. Hook-Lift machines are protected with an anti corrosive primer base and 2 coats of black finish colour.

Standard Equipment

  • Working load limit (WLL) = 6000kg
  • Tare weight = 960kg
  • Hydraulic working pressure = 210 BAR (3000psi)
  • Pump flow rate = 45 - 50L/min
  • Hyd. oil tank capacity = 55L
  • To suit bin lengths 2900 to 4600mm
  • Bin rail width = 1060mm
  • Tunnel height = 40mm
  • Lift bar height = 900mm

Optional Equipment

  • Stabilizer jack legs
  • Inner bin locks
  • Manually adjustable hook height
  • Tool box (steel or S/Steel)
  • Single or dual work area lights
  • Amber warning beacon

Watch 3D animation
