1730-K

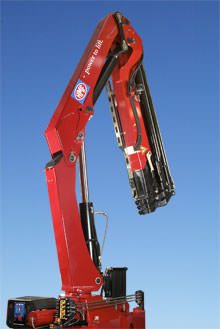

HMF Crane 1730-K

Description

The HMF 1730-K Series – suitable for fast grab work far away from the vehicle

HMF’s latest generation of crane loaders in the 17 tm range has been developed and designed to solve many different lifting tasks. Advanced methods of calculation have been used when designing the crane’s components and geometry, to ensure that the cranes offer a power-to-weight ratio amongst the best on the market.

HMF focuses heavily on crane safety and incorporates “safety first” in all crane functions. HMF is the only manufacturer to offer a totally integrated user-friendly safety system, which only interferes when absolutely necessary.

Flexible design
The HMF 1730-K Series is constructed as a strong and versatile working tool. The crane is available with up to 6 hydraulic extensions and 15° over-bending between the main boom and the jib, which provides high flexibility for demanding tasks in narrow places, e.g. through low gates and windows. The crane is equipped with a link arm on the jib, which provides high lifting capacity, even when the boom system is fully extended. The crane is suitable for fast grab work and for loading and unloading tasks at a low height far away from the vehicle.

The 1730-K Series is equipped with a user-friendly speed control, which at the same time provides an increased lifting capacity. This system is activated when the load moment of the crane approaches its maximum capacity and therefore optimizes the operator’s ability to finely adjust the movements of the crane.

Stabilizer beams are available either with fixed stabilizer legs, manual swing-up legs to 60° or hydraulic swing-up stabilizer legs up to 180°. This flexibility makes all kinds of mounting on the vehicle possible.

Whether the requirement is fast grab work or lifting at long reach, the HMF 1730-K Series is the right crane. As a part of a wide range of product enhancing optional extras for the HMF 1730-K Series, both winch and extra valves led in either hose guides or hose reels can be specified.



Loading group B3
Enhed
1730-K1
1730-K2
1730-K3
1730-K4
Load moment
tm
16,1
15,6
15,2
14,8
Hydraulic reach
m
6,2
8,3
10,4
12,7
Slewing torque
kgm
1794

1794

1794

1950
Slewing angle
°
400
400
400
400
Max. heel at max. moment
°
5
5
5
5
Working pressure
Bar
330
330
330
330
Recommended pump performance
L/min
50
50
50
50
Height above chassis
mm
2245
2245
2245
2245
Length of crane, no extra valves
mm
820
820
820
820
Length of crane, with extra valves
mm
945
945
945
945
Width
mm
2500
2500
2500
2500
Stabilizer spread, standard
mm
4615
4615
4615
4615
Stabilizer spread, single
mm
5590
5590
5590
5590
Stabilizer spread, double
mm
6470
6470
6470
6470
Weight of standard crane excl. stabilizers*
kg
1370
1510
1650
1785
Weight of stabilizers, standard*
kg
200
200
200
200
Weight of stabilizers, single*
kg
235
235
235
235
Weight of stabilizers, double*
kg
300
300
300
300
Loading group B3
Enhed
1730-K5
1730-K6
Load moment
tm
14,4
14,1
Hydraulic reach
m
14,9
17,2
Slewing torque
kgm
1794

1794

Slewing angle
°
400
400
Max. heel at max. moment
°
5
5
Working pressure
Bar
330
330
Recommended pump performance
L/min
50
50
Height above chassis
mm
2245
2245
Length of crane, no extra valves
mm
820
820
Length of crane, with extra valves
mm
945
945
Width
mm
2500
2500
Stabilizer spread, standard
mm
4615
4615
Stabilizer spread, single
mm
5590
5590
Stabilizer spread, double
mm
6470
6470
Weight of standard crane excl. stabilizers*
kg
1905
2000
Weight of stabilizers, standard*
kg
200
200
Weight of stabilizers, single*
kg
235
235
Weight of stabilizers, double*
kg
300
300
