1300-K

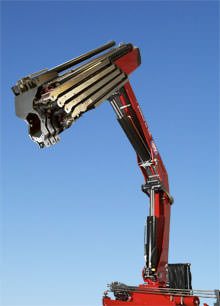

HMF Crane 1300-K

Description

The HMF 1300-K Series – a strong and versatile working tool

HMF’s latest generation of loader cranes in the 13 tm range has been developed and designed to solve many different lifting tasks. Advanced methods of calculation have been used when designing the crane’s components and geometry, to ensure that the cranes offer a power-to-weight ratio amongst the best on the market.

HMF focuses heavily on crane safety and incorporates “safety first” in all crane functions. HMF is the only loader crane manufacturer to offer a totally integrated user-friendly safety system, which only interferes when absolutely necessary.

Flexible design
The HMF 1300-K Series is constructed as a strong and versatile working tool. The crane is available with up to 6 hydraulic extensions and 15° over-bending between the main boom and the jib, which provides high flexibility for demanding tasks in narrow places, e.g. through low gates and windows.

The dual link arm system gives very precise and regular boom movements in the entire working area and is particularly well suited for long reaches and lifting in high positions.
Stabilizer beams are available either with fixed stabilizer legs, manual swing-up legs to 20° or hydraulic swing-up stabilizer legs up to 180°. This flexibility makes all kinds of mounting on the vehicle possible.

Whether the requirement is for vertical lifting in high positions or lifting at long reach, the HMF 1300-K Series is the right crane. As a part of a wide range of product enhancing optional extras for the HMF 1300-K Series, both winch and extra valves led in either hose guides or hose reels can be specified.



Loading group B3
Unit
1300-K1
1300-K2
1300-K3
1300-K4
Load moment
tm
12.1
11.7
11.3
10.8
Hydraulic reach
m
6.2
8.3
10.4
12.7
Slewing torque
kgm
1794

1794

1794

1460
Slewing angle
°
400
400
400
400
Max. heel at max. moment
°
5
5
5
5
Working pressure
bar
300
300
300
300
Recommended pump performance
l/min
50
50
50
50
Height above chassis
mm
2250
2250
2250
2250
Length of crane, no extra valves
mm
820
820
820
820
Length of crane, with extra valves
mm
945
945
945
945
Width
mm
2500
2500
2500
2500
Stabilizer spread, standard
mm
4615
4615
4615
4615
Stabilizer spread, single
mm
5590
5590
5590
5590
Stabilizer spread, double
mm
6470
6470
6470
6470
Weight of standard crane excl. stabilizers*
kg
1360
1500
1640
1775
Weight of stabilizers, standard*
kg
200
200
200
200
Weight of stabilizers, single*
kg
235
235
235
235
Weight of stabilizers, double*
kg
300
300
300
300
